De Montage van de roestvrij staalhoge druk
>
|
| Plaats van herkomst | China |
| Merknaam | Kasugai |
| Certificering | ISO PED AD2000 |
| Modelnummer | De Contactdooslas van ASME B16.11 & Ingepaste Elleboog 90° |
| Document | Productenbrochure PDF |

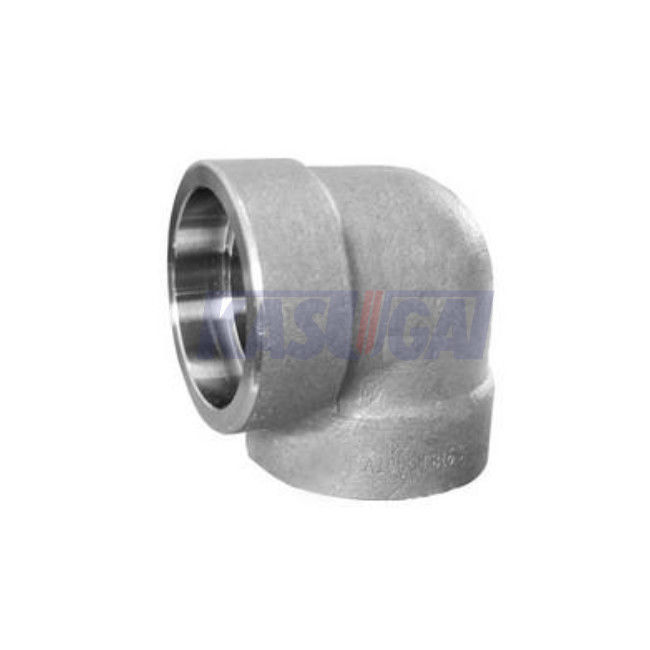

Van de het Roestvrije staalhoge druk van ASME B16.11 de Contactdooslas & Ingepaste Elleboog 90°
Productinformatie
| Productnaam | Van de het Roestvrije staalhoge druk van ASME B16.11 de Contactdooslas & Ingepaste Elleboog 90° |
| Groottewaaier | 1/8“ aan 4“ |
| Normen |
ANSI/ASMEB B1.20.1 (Draadtype) ASME B16.11 |
| Montagetype | Contactdoos-lassende (SW) Elleboog 90°, Ingepaste (THD) Elleboog 90° |
| Drukklasse |
Ingepast Beëindigen: 2000LBS, 3000LBS, 6000LBS Het Beëindigen van het contactdooslassen: 3000LBS, 6000LBS, 9000LBS |
| Eindig | Gegalvaniseerd, Zwarte (Ingelegde Koolstof), |
De ellebogen 90° worden van ASME B16.11 gebruikt om de pijp of stroomrichting te veranderen door 90 graden. Zij kunnen met twee einden van het contactdooslassen (SW), twee ingepaste einden (van THD), of één eind van het contactdooslassen en één ingepast eind worden geleverd. De ellebogen 90° van SW zijn beschikbaar in Klasse 3000 (grootte van 1/8 ″ aan 4 ″), Klasse 6000 (grootte van 1/8 ″ aan 2 ″), en Klasse 9000 (grootte van 1/8 ″ aan 2 ″). De ellebogen 90° van THD zijn beschikbaar in Klasse 2000, Klasse 3000 en Klasse 6000 (allen in grootte van 1/8 ″ aan 4 ″).
Afmetingen van de Elleboog 90° van ASME B16.11 SW (mm)
| NPS | B max. |
B min. |
A 3000# |
A 6000# |
A 9000# |
| 1/8“ | 11.2 | 10.8 | 11.0 | 11.0 | - |
| 1/4“ | 14.6 | 14.2 | 11.0 | 13.5 | - |
| 3/8“ | 18.0 | 17.6 | 13.5 | 15.5 | - |
| 1/2“ | 22.2 | 21.8 | 15.5 | 19.0 | 25.5 |
| 3/4“ | 27.6 | 27.2 | 19.0 | 22.5 | 28.5 |
| 1“ | 34.3 | 33.9 | 22.5 | 27.0 | 32.0 |
| 11/4“ | 43.1 | 42.7 | 27.0 | 32.0 | 35.0 |
| 11/2“ | 49.2 | 48.8 | 32.0 | 38.0 | 38.0 |
| 2“ | 61.7 | 61.2 | 38.0 | 41.0 | 54.0 |
| 21/2“ | 74.4 | 73.9 | 41.0 | - | - |
| 3“ | 90.3 | 89.8 | 57.0 | - | - |
| 4“ | 115.7 | 115.2 | 66.5 | - | - |
| NPS | G 3000# min. |
G 6000# min. |
G 9000# min. |
J min. |
| 1/8“ | 2.41 | 3.15 | - | 9.5 |
| 1/4“ | 3.02 | 3.68 | - | 9.5 |
| 3/8“ | 3.20 | 4.01 | - | 9.5 |
| 1/2“ | 3.73 | 4.78 | 7.47 | 9.5 |
| 3/4“ | 3.91 | 5.56 | 7.82 | 12.5 |
| 1“ | 4.55 | 6.35 | 9.09 | 12.5 |
| 11/4“ | 4.85 | 6.35 | 9.70 | 12.5 |
| 11/2“ | 5.08 | 7.14 | 10.15 | 12.5 |
| 2“ | 5.54 | 8.74 | 11.07 | 16.0 |
| 21/2“ | 7.01 | - | - | 16.0 |
| 3“ | 7.62 | - | - | 16.0 |
| 4“ | 8.56 | - | - | 19.0 |
| NPS | 3000# | 6000# | 9000# | |||
| D max. |
D min. |
D max. |
D min. |
D max. |
D min. |
|
| 1/8“ | 7.6 | 6.1 | 4.8 | 3.2 | - | - |
| 1/4“ | 10.0 | 8.5 | 7.1 | 5.6 | - | - |
| 3/8“ | 13.3 | 11.8 | 9.9 | 8.4 | - | - |
| 1/2“ | 16.6 | 15.0 | 12.5 | 11.0 | 7.2 | 5.6 |
| 3/4“ | 21.7 | 20.2 | 16.3 | 14.8 | 11.8 | 10.3 |
| 1“ | 27.4 | 25.9 | 21.5 | 19.9 | 16.0 | 14.4 |
| 11/4“ | 35.8 | 34.3 | 30.2 | 28.7 | 23.5 | 22.2 |
| 11/2“ | 41.6 | 40.1 | 34.7 | 33.2 | 28.7 | 27.2 |
| 2“ | 53.3 | 51.7 | 43.6 | 42.1 | 38.9 | 37.4 |
| 21/2“ | 64.2 | 61.2 | - | - | - | - |
| 3“ | 79.4 | 76.4 | - | - | - | - |
| 4“ | 103.8 | 100.7 | - | - | - | - |
| NPS | 3000# | 6000# | 9000# | |||
| C max. |
C min. |
C max. |
C min. |
C max. |
C min. |
|
| 1/8“ | 3.18 | 3.18 | 3.96 | 3.43 | - | - |
| 1/4“ | 3.78 | 3.30 | 4.60 | 4.01 | - | - |
| 3/8“ | 4.01 | 3.50 | 5.03 | 4.37 | - | - |
| 1/2“ | 4.67 | 4.09 | 5.97 | 5.18 | 9.35 | 8.18 |
| 3/4“ | 4.90 | 4.27 | 6.96 | 6.04 | 9.78 | 8.56 |
| 1“ | 5.69 | 4.98 | 7.92 | 6.93 | 11.38 | 9.96 |
| 11/4“ | 6.07 | 5.28 | 7.92 | 6.93 | 12.14 | 10.62 |
| 11/2“ | 6.35 | 5.54 | 8.92 | 7.80 | 12.70 | 11.12 |
| 2“ | 6.93 | 6.04 | 10.92 | 9.50 | 13.84 | 12.12 |
| 21/2“ | 8.76 | 7.67 | - | - | - | - |
| 3“ | 9.52 | 8.30 | - | - | - | - |
| 4“ | 10.69 | 9.53 | - | - | - | - |
Algemene Nota: alle afmetingen zijn in millimeter
Nota's: A: centrum-aan-bodem van contactdoos; B: de contactdoos droeg diameter; D: droeg diameter van elleboog; C: de dikte van de contactdoosmuur; G: de dikte van de lichaamsmuur; J: contactdoosdiepte.
Afmetingen van de Ingepaste Elleboog 90° van ASME B16.11 (mm)
| NPS | A 2000# |
A 3000# |
A 6000# |
H 2000# |
H 3000# |
H 6000# |
| 1/8“ | 21 | 21 | 25 | 22 | 22 | 25 |
| 1/4“ | 21 | 25 | 28 | 22 | 25 | 33 |
| 3/8“ | 25 | 28 | 33 | 25 | 33 | 38 |
| 1/2“ | 28 | 33 | 38 | 33 | 38 | 46 |
| 3/4“ | 33 | 38 | 44 | 38 | 46 | 56 |
| 1“ | 38 | 44 | 51 | 46 | 56 | 62 |
| 11/4“ | 44 | 51 | 60 | 56 | 62 | 75 |
| 11/2“ | 51 | 60 | 64 | 62 | 75 | 84 |
| 2“ | 60 | 64 | 83 | 75 | 84 | 102 |
| 21/2“ | 76 | 83 | 95 | 92 | 102 | 121 |
| 3“ | 86 | 95 | 106 | 109 | 121 | 146 |
| 4“ | 106 | 114 | 114 | 146 | 152 | 152 |
| NPS | G 2000# |
G 3000# |
G 6000# |
B | L2 |
| 1/8“ | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 1/4“ | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 3/8“ | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 1/2“ | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 3/4“ | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 1“ | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 11/4“ | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 11/2“ | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 2“ | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 21/2“ | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 3“ | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 4“ | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
Algemene Nota: alle afmetingen zijn in millimeter
Nota: A: centrum-aan-Beëindigen van ingepaste elleboog; H: buitendiameter van band; G: minimummuurdikte; B: minimumlengte van perfecte lengte; L2: lengte van nuttige draad.
